Project Manager: JR Carter
Delivery Date: February 12, 2026

Features:

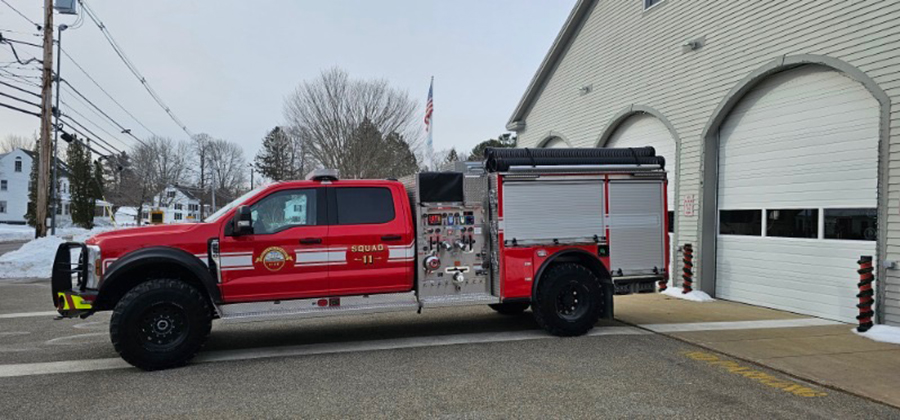

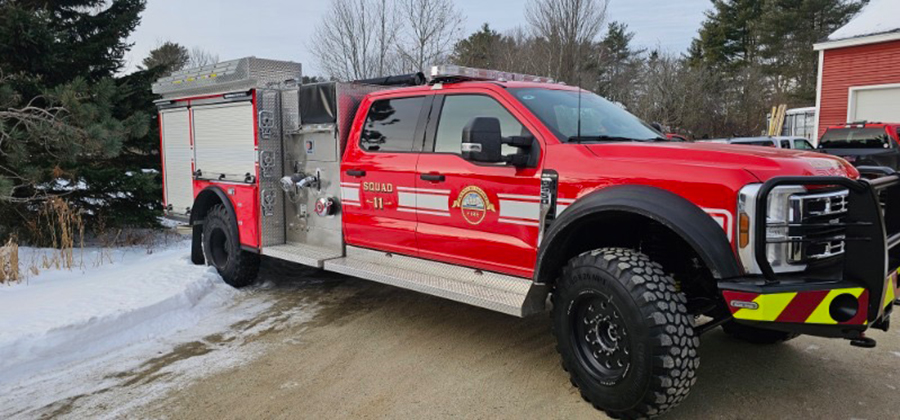

Chassis

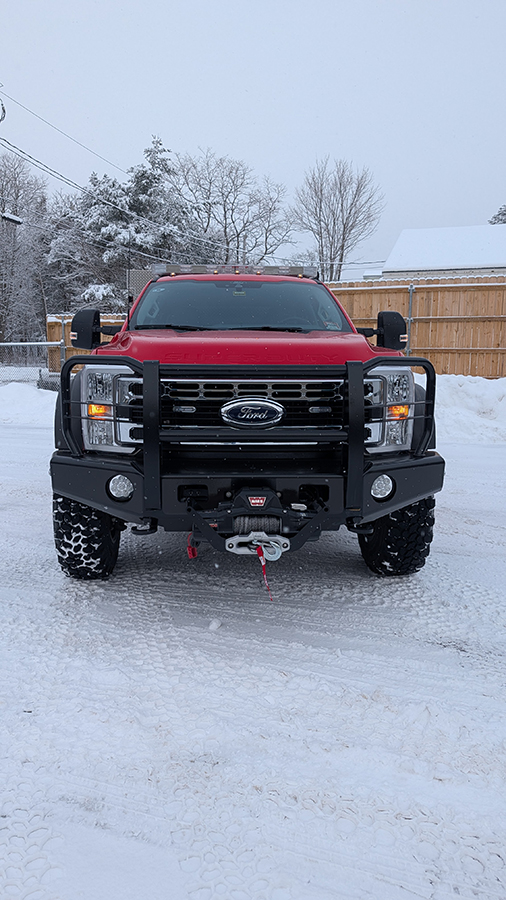

• Model: Ford F550
• Configuration: 4 door 4×4 chassis (203″ wheelbase, 84″ CA)
• Engine: 6.7 L diesel engine rated at 330 hp
• Drive: “Shift on the fly” 4-wheel drive
• Transmission: Automatic transmission

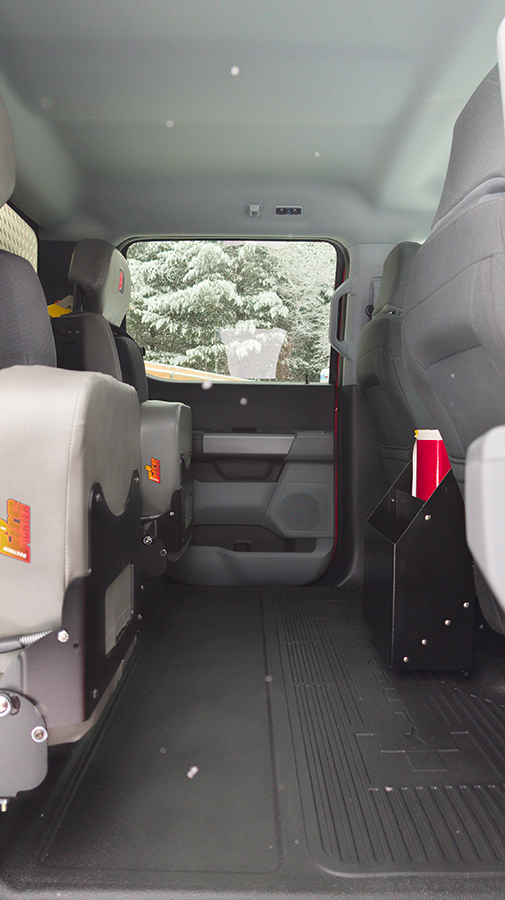

• Seating: Seating for four with two SCBA seats (Both rear SCBA seats)

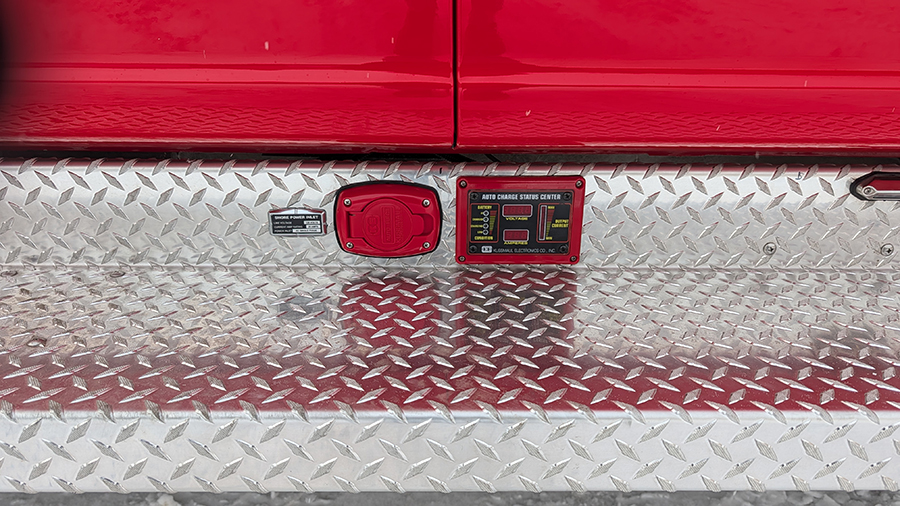

• Additional Features: Battery conditioner with AutoEject™, Aluminum wheels
• Tires & Wheels: Super Single Tire & Wheel Package

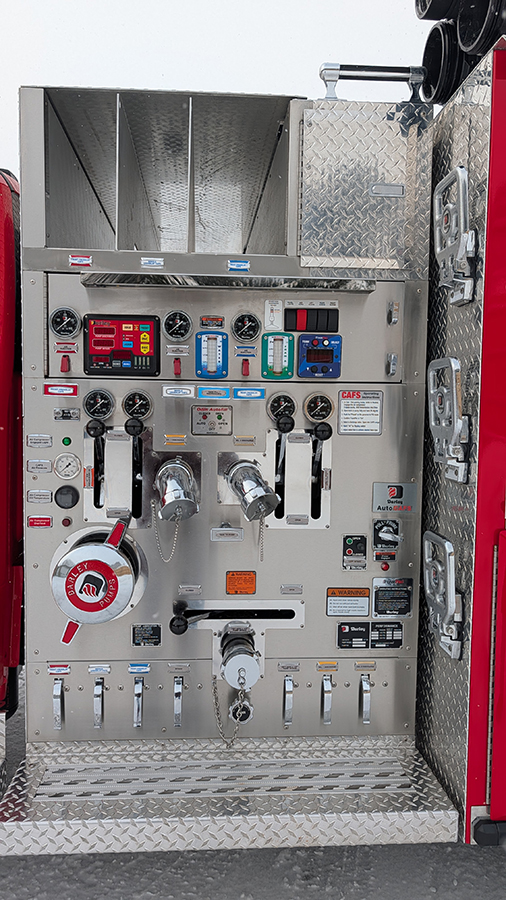

Fire Pump
• Model: Darley PSMC midship pump with a UL rating of 1500 gpm at 150 psi
• Compressor: Gear driven 120 cfm rotary screw air compressor for the AutoCAFS® pumping system with a FoamPro 2001 foam proportioned
• Plumbing: All stainless steel plumbing package
• Seal: Maintenance free, reliable mechanical seal
• Discharges: 3 CAFS crosslay discharges (2 – 1-1/2″ NSTM and 1 – 2-1/2″ NSTM)
• Options: Up to two optional discharges, including: hose bed preconnect, deckgun, or hose reel (optional 2-1/2″ preconnect)
