Casco, ME – E-One Rescue Pumper

Casco, ME – E-One Rescue Pumper



Project Manager: Chris Champagne
Delivery Date: September 13, 2023



Some of the features added to this E-Max to suit Casco’s specific needs are;:

  • Front suction with internal MIV valve and dedicated Trident air primer specifically routed to the suction
  • Enhanced warning package with all Whelen LED warning lights, Q2B siren, Electronic siren with 2 speakers, and LED Roto Ray to clear a path to emergencies
  • Whelen LED scene lighting on all sides of the apparatus to provide high output 12 volt illumination while enroute or on a scene
  • Typhoon severe duty cab with enclosed cab storage compartments with exterior access, to promote a clean environment
  • 12” tall severe duty hot dip galvanized and powder coated frame, crossmembers, battery boxes, and fuel tank
  • Cummins L9 motor at 450HP with Allison EVS3000 transmission

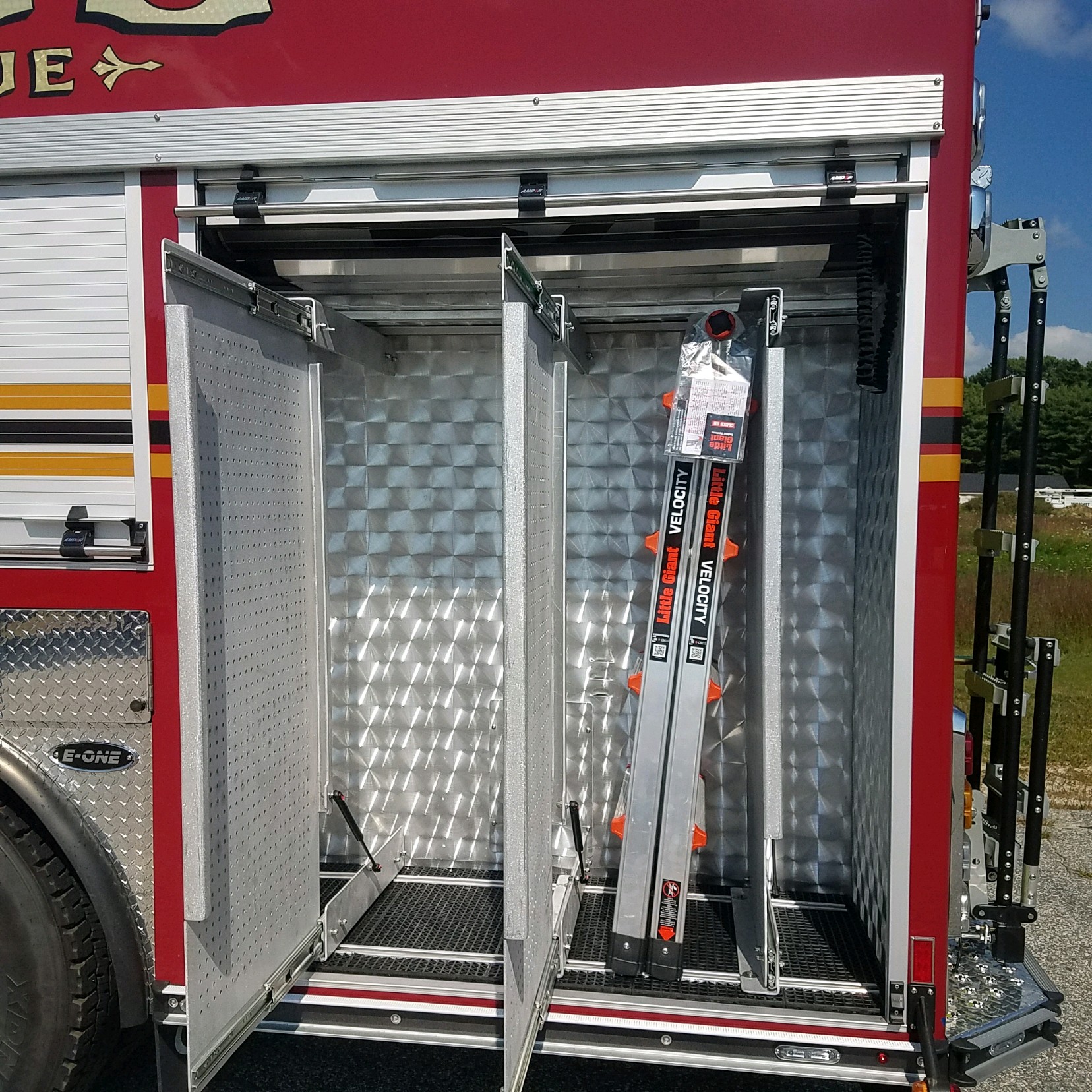

  • E-Max rescue style body with enclosed pump controls, internal ladder storage, and internal suction compartments
  • A transverse compartment holds a stokes basket and long boards
  • Preconnects are loaded on poly removable trays with spares stored in the station
  • The pump is a E-One/Darley E-Max pump with a 1500 GPM rating
  • The water tank is from UPF with a capacity of 1000 gallons of water and 30 gallons of Class A foam
  • The foam system is Class One Smart Foam, the ground level refill system is also supplied by Class One
  • The deck gun is made by Elkhart brass and is fully remote controllable with a wireless controller
  • The truck has the E-One decon system to safely wash Firefighter’s gear on scene

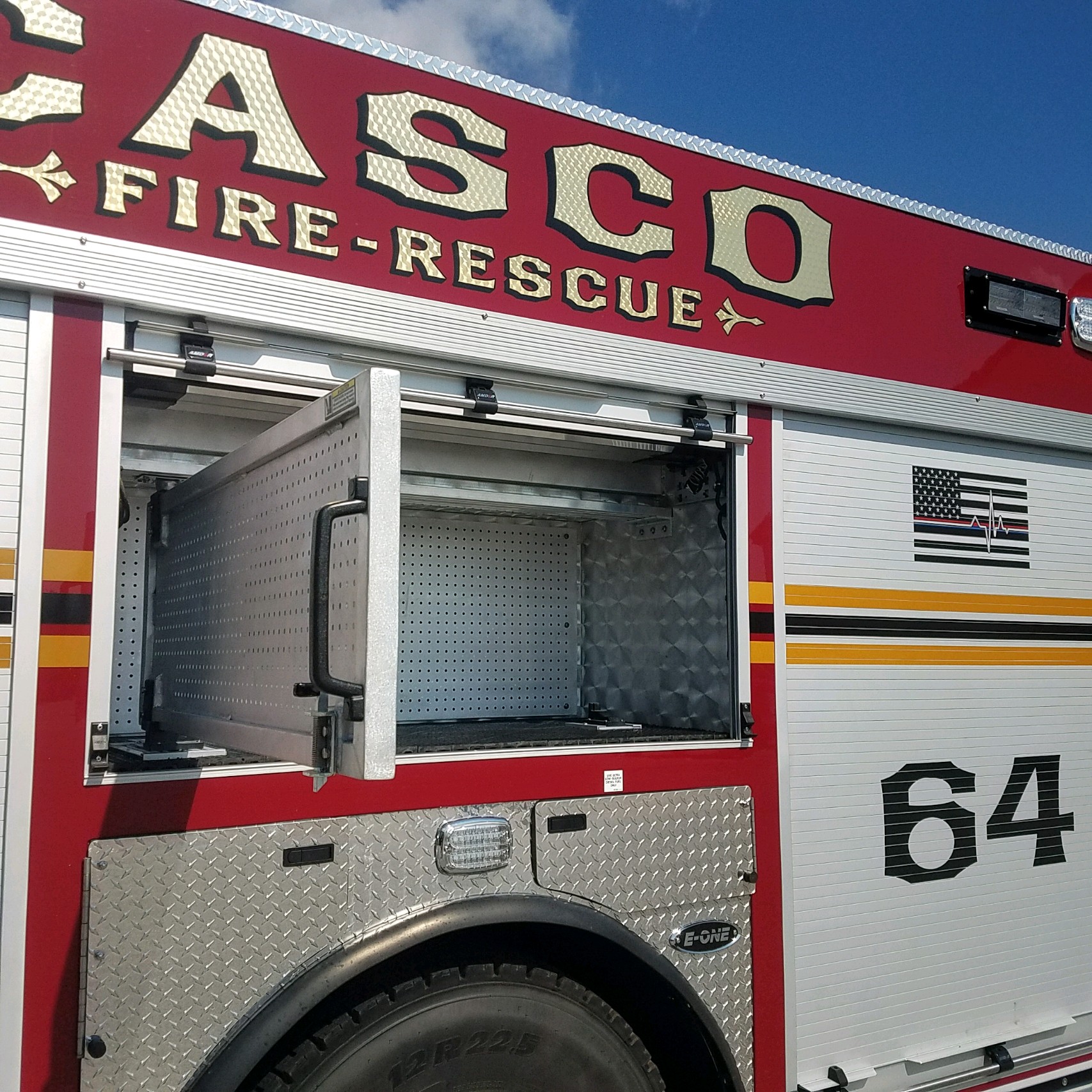

  • The all aluminum body has swirled compartment interiors to maximize the reflectivity of the dual LED strip lights in each compartment
  • All compartments has 12 volt and 110 outlets
  • Cab and body handrails are backlit in RED color to scene safety
  • The large capacity hosebed is accessed using a ZICO fold out ladder and covered with a E-One heavy duty aluminum hosebed cover
  • Each compartment has a custom layout of shelves, pull out tool boards, trays, and swing out tool board
  • The wheel wells have storage for SCBA, extinguishers, and a pull out for 50# of speedy dry
